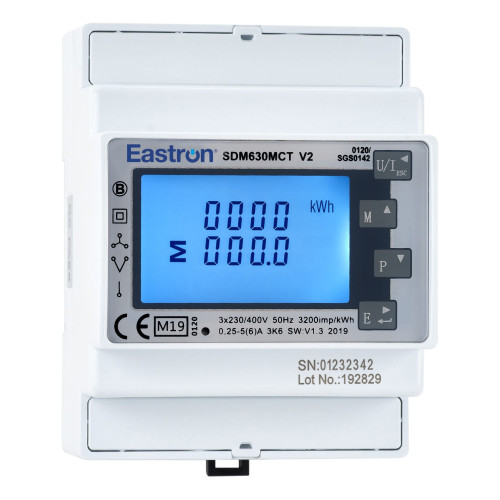

The SDM630MCT is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters. This includes a negative power reading, which can also indicate a reversal of CT installation or connection. With builtin pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

Models:

• SDM630MCT - MOD - MID - 1/5A Input Modbus RS485 & Pulsed Outputs
• SDM630MCT - MBUS - MID – 1/5A Input Mbus & Pulsed Outputs
• SDM630MCT - MOD - MV – 0.333mV Input Modbus RS485 & Pulsed Outputs (Not MID certified)

Features:

• MID Certified (Excluding SDM630MCT - MOD - MV)
• UL Listed
• Class 0.5 accuracy
• Single phase or three phase network compatible
• Four module DIN rail mounted
• Highly visible backlit display
• Simple menu navigation
• Built in Modbus and Pulsed outputs or optional Mbus interface

Parameter:

• Phase to Neutral Voltage (V)
• Phase Current (A)
• Voltage Total Harmonic Distortion (U%THD)
• Current Total Harmonic Distortion (I%THD)
• Frequency (Hz)
• Power Factor (PF)
• Current Max Demand (MD A)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy (kVArh)

Certification:

• MID: EN50470-1 & EN50470-3 Class B
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3
• UL Listed
• IEC/EN62052-11:2003 Class 0.5s
